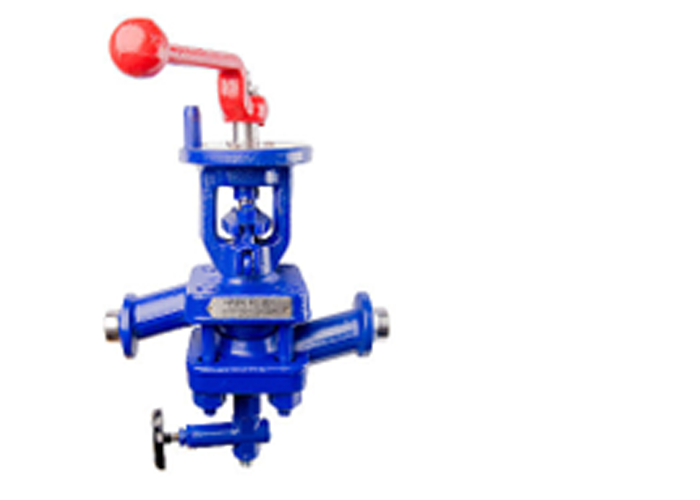

CBD
Continuous Blowdown Valve Reaktomat
BA 46, BA 47, BAE 46..., BAE 47...
BA 46/BAE 46..., PN 40/CL 150/300, DN 15-DN 50
BA 47/BAE 47..., PN 63/CL 600, DN 25, 40, 50
Description
Continuous blowdown valves are used for removing boiler
blowdown from steam generating units:
- Continuous blowdown valve BA 46 (manually operated)
- Continuous blowdown valve BA 47 (manually operated)
- Continuous blowdown valve BAE 46... (with electric actuator)
- Continuous blowdown valve BAE 47... (with electric actuator)
Download

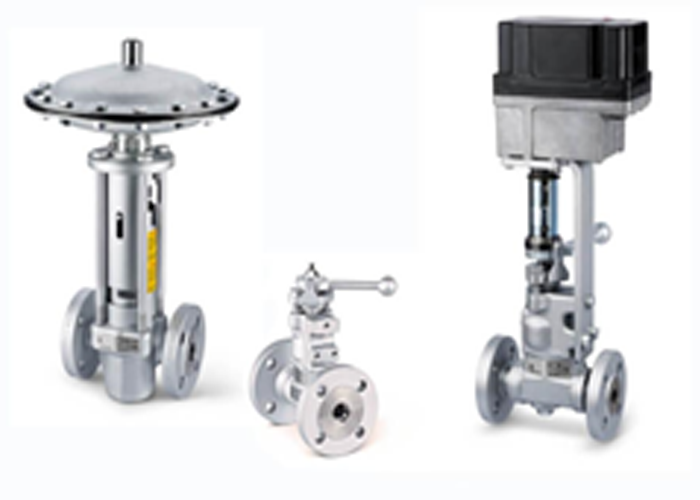

IBD
Rapid-Action Intermittent Blowdown Valves
PA 46, PN 40 / CL 150 / 300, DN 20-50
PA 47, PN 63 / CL 400, DN 25, 40, 50
PA 48, PN 100 / CL 600, DN 25, 40, 50
MPA 46, PN 40 / CL 150 / 300, DN 20-50
MPA 47, PN 63 / CL 400, DN 25, 40, 50
MPA 48, PN 100 / CL 600, DN 25, 40, 50
Download

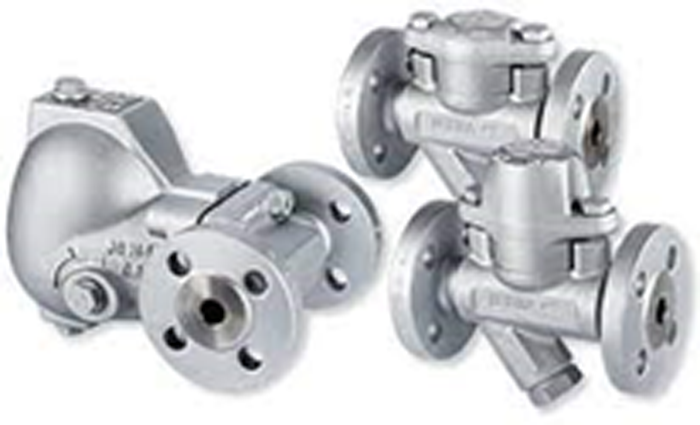

Steam Trap
Steam traps have to work perfectly
In industry, one of steam's most important tasks is to provide thermal energy through condensation, and to heat a variety of media in heat exchangers. During this process, the steam flows
through pipes and cools down more and more en route, so that condensate forms here, too.
Download
